400A全數字柴油雙把靜音發電電焊機 | 400A Diesel silence double generator welder

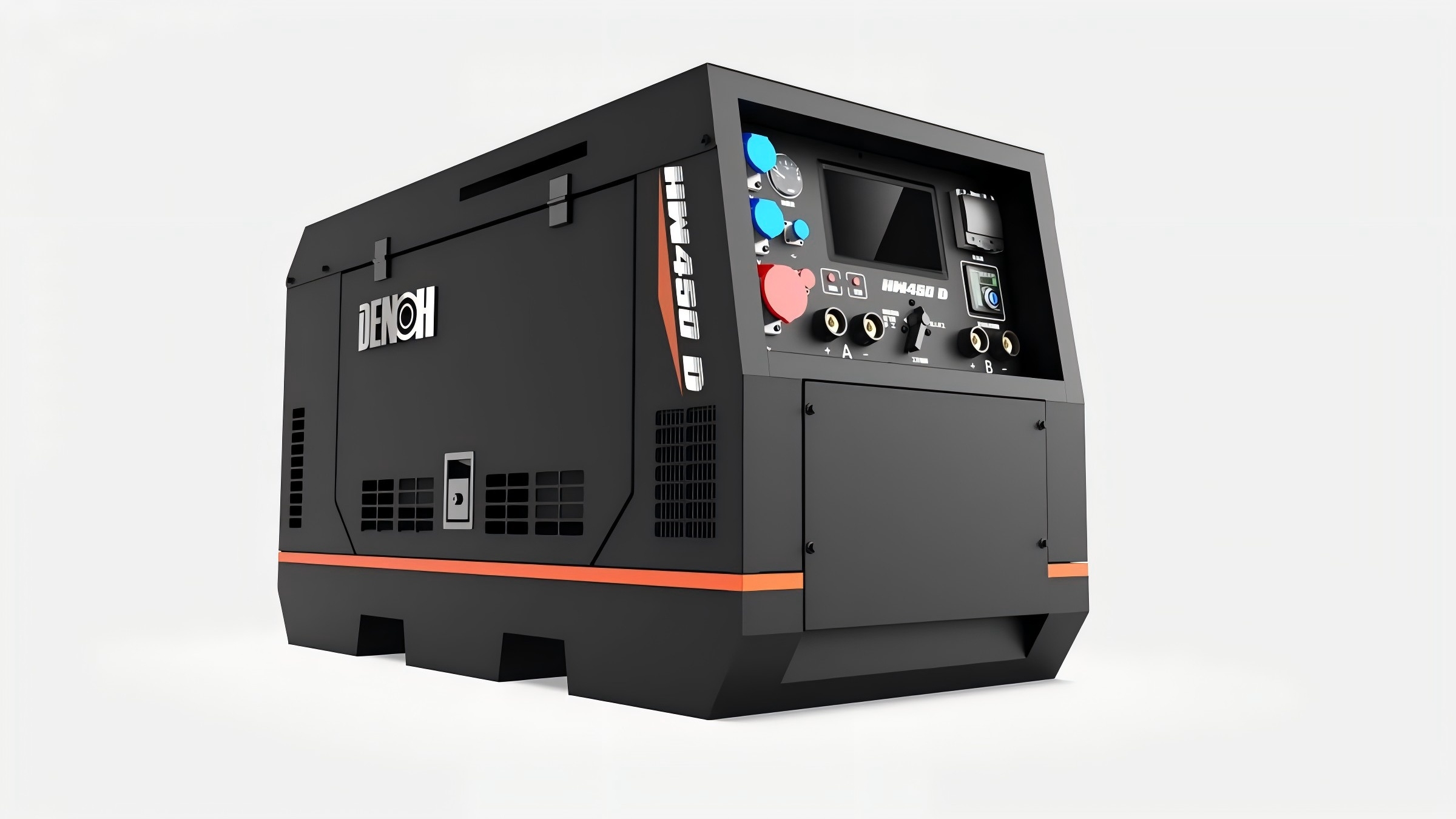

HW450D-EW 全數字柴油400A靜音發電電焊機 | Diesel 400A generator welder

產品優勢 | Product Advantage

*
雙把數字功能的發動機焊機
Engine welding machine with dual digital function
雙把電流可合并單把輸出
Double handle current can be combined with single handle output
主電路拓?fù)浣Y(jié)構采用Buck（斬波）拓?fù)浣Y(jié)構
The main circuit topology adopts a Buck (chopping) topology structure
采用一種雙閉環專利技術（發明專利號：ZL 2019 1 0681162.9）
Adopting a dual closed-loop patented technology
采用DFJ（低飛濺）波形控制技術
Adopting DFJ (Low Splash) waveform control technology

該發動機焊機集柴油發電及電焊一體，Buck拓?fù)浣Y(jié)構為主電路平臺，采供IGBT數字?jǐn)夭刂啤０l(fā)電效率高，持續作業能力強，電流調節范圍及寬，焊接穩定，可用于手把焊，半自動焊和全自動焊接機器人。

適應性及適用范圍廣，適合野外焊接作業。已經廣泛應用于城市建設，橋梁焊接，管道工程，救災搶險等各領域.

The engine welding machine is an integrated diesel power generation and welding machine, with a Buck topology as the main circuit platform, and adopts IGBT digital chopping control. High power generation efficiency, strong continuous operation ability, wide current regulation range, stable welding, can be used for manual welding, semi-automatic welding, and fully automatic welding robots.
Wide adaptability and applicability, suitable for field welding operations. It has been widely used in various fields such as urban construction, bridge welding, pipeline engineering, disaster relief and rescue

HW450D-EW性能參數配置/Specification of HW450D-EW
碳刷/Excitation	數字無刷/No
驅動方式/Driven	直接耦合/Direct coupling
防護等級/Protection class	IP23
絕緣等級/Insulation class	H
焊接輸出/Descending Output
額定功率/Rated power	12.4 KW
額定電流單/雙/Rated current	360/200 DCA
額定電壓單/雙/Rated voltage	34.4/28 DCV
空載電壓/Idle voltage	85 DCV
額定使用率/Rated duty cycle	50%
焊接電流調節范圍/Current range control	單人 Single(60-400) DCA
	雙人 Double(40-200)×2 DCA
平特性/ Level characteristics （CV）
額定功率/Rated usage rate	9.6 KW
空載電壓/No-load voltage	85V
額定電流/Rated current	320A
電壓調節范圍/Voltage adjustment range	15-35 DCV
額定使用率/Rated usage rate	80%
輔助電輸出/Accessorial Receptacle
額定功率/Rated power	15.0 KVA
額定電壓/Rated voltage	400 V(AC)
輔助電額定電流/Rated current	22.7 A
暫載率/Rated duty cycle	80%
頻率/Frequency	50
激勵方式/Incentive method	Brushless excitation
發動機/Engine
排放階段/Discharge stage	非道路三階段/Non-road three-stage
形式/Form	四沖程4缸/4-stroke, 4-cylinder
排氣量/Displacement	1.372/1.642 L
額定功率/Rated output power	22/26.8 KW
額定轉速/Rated speed	3000 rpm
啟動方式/Starting system	電啟動/Electric start12V
燃料/Fuel	柴油/Diesel
冷卻方式/Cooling system	水冷/Water-cooled
其它/Others
油箱容量/Fuel tank capacity	75 L
外形尺寸/Dimension (L×W×H)	1530×710×865 mm
重量/Net weight	550 Kg
電池/Battery	12V-45AH
